脱水振动筛

脱水振动筛主要特点

     脱水直线振动筛具有体积小、结构简单合理、筛分精度高、全封闭无污染、低噪音、低能耗、维修方便、保养简单、筛网寿命长等优点。可单层或多层使用,最多可达到五层,筛框一般为木制结构,若筛孔较大,产量较高时筛框可制成钢质结构,若筛分腐蚀性物料,与物料接触部分采用不锈钢制作。电机安装方式可分为下振式和侧振式,减振器安装方式可分为座式和吊挂式。另我公司还可以根据用户需要进行特殊设计制造。脱水振动筛是一种运动轨迹为直线的直线振动筛,具有结构先进,坚固耐用,噪音低,维修方便等优点。适用于选煤、选矿、电力、化工、轻工等部门,对中、细粒度物料进行干、湿式筛分或脱水、脱介、脱泥。


Features
Dehydration linear vibrating screen has the advantage of the  small volume, simple structure, reasonable, screening of high precision, fully enclosed no pollution, low noise, low energy consumption, convenient maintenance screen mesh, simple maintenance and long service life, etc.It can be used single or multi-layer, up to five layers. The screen flame is commonly wooden structure.If the mesh hole is bigger and yield is higher, screen flame can be made into steel structure.When screening corrosive materials,the part of contacting materials adopts stainless steel.Electrical installation can be divided into the under vibration and lateral vibration. Shock absorber installation can be divided into base type and hanging type.My company can also design and manufacture according to user needs special.Dehydration linear vibrating screen is a kind of linear vibrating screen, has the advanced structure, strong and durable, low noise, easy maintenance, etc.Applicable to the coal preparation, ore dressing, power, chemical industry, light industry and other departments, for medium and fine grained materials to dry and wet screening or dewatering, medium, and desliming.

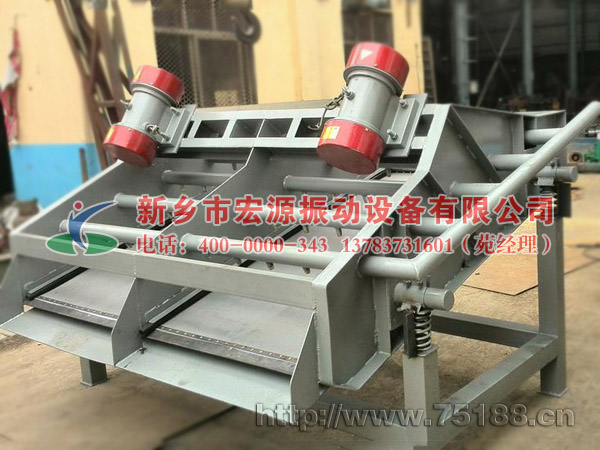

脱水振动筛图片

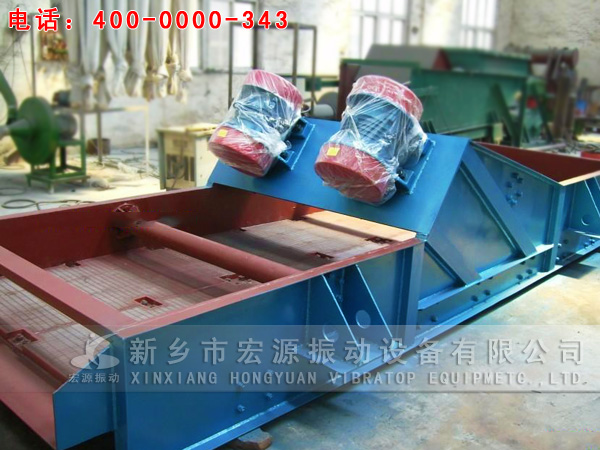

Photos

脱水振动筛是一种运动轨迹为直线的直线振动筛,具有结构先进,坚固耐用,噪音低,维修方便等优点。
   Dehydration linear vibrating screen is a linear vibrating screen which the track of moving is
linear.It has advantage of advanced
structurer,firm and durable,low noisy,easy maintaining and etc.


脱水振动筛适用于选煤、选矿、电力、化工、轻工等部门,对中、细粒度物料进行干、湿式筛分或脱水、脱介、脱泥。
                               Dehydration linear vibrating screen is appropriate for the coal preparation, ore dressing, power, chemical industry, light industry and
              other departments, for medium and fine grained materials to dry and wet screening or dewatering, medium, and desliming.

脱水振动筛
脱水振动筛

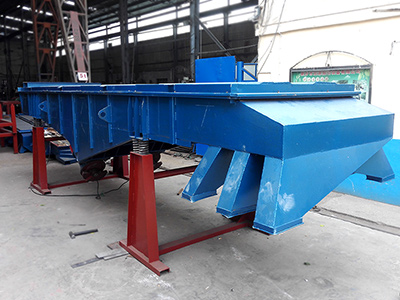

Dehydration linear vibrating screen
脱水振动筛
脱水振动筛侧面
lateral view

脱水振动筛适用行业

    直线振动筛适用于0.74-10mm,含水小于7%,无粘性物料的任何干式物料的筛分。主要用于磨料磨具原料、化工、塑料、医药、树脂粉、陶瓷原料、冶金、建材、粮食、化肥等行业中的干式粉状、细颗粒状或细微粉物料的筛分。
 Dehydration linear vibrating screen applications
     Linear vibrating screen is suitable for 0.74 to 10 mm, water content is less than 7%, and no viscous material any dry material screening.Mainly used in abrasives raw materials, chemical industry, plastic, medicine, powder, ceramic materials, metallurgy, building materials, food, chemical fertilizer and other industries which screens in the dry powder, subtle fine granular or powder material .

脱水振动筛产品结构以及各部分功能说明

   本筛机主要由筛箱、筛框、筛网、振动电机、电机台座、减振弹簧、支架等组成。




   1、筛箱:由数种厚度不同的钢板焊制而成,具有一定的强度和刚度,是筛机的主要组成部分。
   2、筛框:由松木或变形量较小的木材制成,主要用来保持筛网平整,达到正常筛分。
   3、筛网:有低碳钢、黄铜、青铜、不锈钢丝等数种筛网。
   4、振动电机(使用与维修方法详见振动电机使用说明书)。
   5、电机台座:安装振动电机,使用前连接螺钉必须拧紧,特别是新筛机试用前三天、必须反复紧固,以免松动造成事故。
   6、减振弹簧:阻止振动传给地面,同时支持筛箱的全部重量,安装时,弹簧必须垂直与地面。
   7、支架:由四个支柱和两个槽钢组成,支持着筛箱,安装时支柱必须垂直与地面,两支柱下面的槽钢应相互平行。
Stucture and specification of the part function
The machine is mainly consist of screen box, screen, screen, vibration motor, motor pedestal, damping spring, stents and so on this machine is mainly composed of screen box, screen, screen, vibration motor, motor pedestal, damping spring, support, etc.
        1.screen box: By a number of different thickness plates welded together, have a certain strength and stiffness, is the main part of the screen machine.
       2.flame: made of
 a small wood of less deformation or pine,mainly use for keeping screen smooth, achieve normal screening.
       3.Screen net:
With low carbon steel, brass, bronze, stainless steel wire and other several kinds of screen mesh.
       4.Vibrating motor:
use and maintenance method as shown in the vibration motor operating instructions
       5.
Motor pedestal: Before installing vibration motor, connection screws must be tightened, especially before the 3 days the new machine use, must tighten repeatedly,in case loosing to cause an accident.
       6.damper spring:
To prevent vibration to the ground, at the same time support the full weight of screen box, when installation, the spring must be vertical with the ground.

       7.support: Is composed of four pillars and two box irons, support the screen box,when installation,pillar must be vertical with the ground, box irons under the two pillars should be parallel to each other.


脱水振动筛使用现场
脱水振动筛使用现场
Woriking site

脱水振动筛主要技术参数

Parameters

直线振动筛技术参数

脱水振动筛产品使用与维修指导

   1、本机应装设电气保护装置。
   2、本机运行初期,每天至少检查地脚螺栓一次,防止松动。
   3、当电机旋转方向不符合要求时,调整电源相序即可。
   4、电机应保证润滑良好,每运行二周左右补充锂基润滑脂(ZL-3)一次,加油时,通过油杯加入适量锂基润滑脂。当采用密封轴承时,电机没有安装油杯。
   5、本机累计运行1500小时后,应检查轴承,若有严重损伤时应立即更换。
   6、本机停置较长时间后再次使用时,应测量绝缘电阻,用于500伏兆欧表测量,应大于0.5兆欧。

The instructions of using and maintaining.
     1. The machine should be installed wih electric protection device.
      2.
The machine run early, check the foundation bolt at least once a day, to prevent loosening.
      3. When the motor rotation direction is not in conformity with the requirements, adjust the power phase sequence.
      4. Motor should guarantee good lubrication, run every two weeks or so and added lithium grease (ZL - 3) once, come on, by adding suitable amount of lithium grease oil cup.When using sealed bearing,motor is not installed oil cup.
       5.After the machine running 1500 hours, should check bearing,it should be replaced immediately if has sever damage.
       6.The machine is stopped again after a long time when using, should be measuring insulation resistance, is used for 500 v megohmmeter,  it should be greater than 0.5 ohms.


脱水振动筛产品日常保养

1、启动前:
   (1)检查粗网及细网有无破损;
   (2)检查运输支撑是否拆除。
  2、启动时:
   (1)注意有无异常杂音;
   (2)电流是否稳定;
   (3)振动有无异状;
3、使用后:每次使用完毕即清理干净。

Current  maintenance.
1.Befor use:
    (1)Check whether there is any damage on the coarse mesh and fine mesh.
    (2)Check whether the transport support is removed.
 2.In use

(1)Note any abnormal noise.

(2)electric current is stable;

(3)Vibration has the same shape;
3.After use:clean after use

脱水振动筛产品定期保养

  定期的检查粗网,细网和弹簧有无疲劳及破损,机身各部位是否因振动而产生损坏,需添加润滑油的部位必须加油润滑。

       备注:DZSF系列直线振动筛(直线筛)产品制作材质分别为:普钢、碳钢、不锈钢三种材质,具体型号及参数请参照直线筛技术参数表中的数据,选型及报价请联系我们的工作人员,另外,我公司还可以根据客户要求制作各种型号规格的直线振动筛,比如:粮食直线筛,葵花籽直线筛,轻型直线筛等特殊行业专用直线筛。

    注:可根据客户需要重新设计产品。宏源振动咨询热线:0373-2678028.

Periodic maintenance
      Regularly check the coarse mesh, mesh and spring without fatigue and damage, the fuselage parts damaged due to vibration, the part of the need to add the lubricating oil must be lubrication.
     Ps:The material of type DZSF linear vibrating screen divided into normal steel,cabon steel and stainless steel,concrete types and parameter please refer to linear vibrating screen technology paremeters.Please contact with our company if choose types and quoted price.Besides,
Our company can also be produced according to customer requirements of various specifications of linear vibrating screen, such as: food linear sieve, sunflower seeds linear sieve, light line screen special industries such as special linear sieve.
        Note:According to the customer need to design the product.Hongyuan viration Phone:0373-2678028
