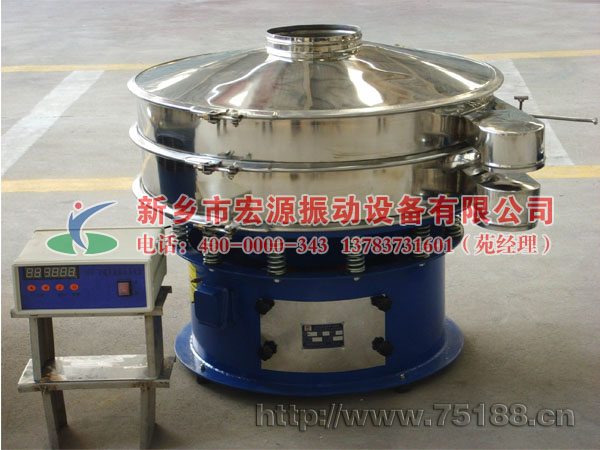

不锈钢超声波振动筛

不锈钢超声波振动筛

超声波振动筛产品概述

     超声波振动筛是将220V、50Hz或110V、60Hz电能转化为18KHz的高频电能,输入超声换能器,将其变成18KHz机械振动,从而达到高效筛分和清网的目的,使超微细粉筛分成为易事。该系统在传统的旋振筛基础上在筛网上引入一个低振幅、高频率的超声波振动波(机械波),以改善超微细粉体的筛分性能。特别适合高附加值精细粉体的用户使用。
    不锈钢超声波振动筛材质为不锈钢,适用于食品、化工、医药等行业。

Summarize

To screen and clean efficiently, this ultrasonic vibrating screen(Ultrasonic Separators) can convert the electric energy of 220V, 50Hz to the high frequency electric energy of 110V, 60Hz, and imporove the vibrating sieving frequency.In order to improve ultrafine powder screening performance,the system lead in a ultrosonic vibration wave(mechanical wave)of low amplitude,high frequency on the screen net,based on the traditional rotary vibrating screen.It very suitbal for high value-added fine powder of users.
    Stainless steel ultrasonic vibrating screen is made of stainless steel.suitbal for food,chemical,phamaceutical and other industries.

超声波换能器

超声波振动筛动画演示

Animation Shown

超声波振动筛产品概述

     改善低密度粉在重力沉降中的平降(粉末与网口轻接触)、滑移效应,改善高密度金属在网口的滞留或楔入,改善带静电粉体的粘附效应,从而提高筛分效率和筛分质量。用筛分通过率表示,一般情况下比不加超声波振动筛增加通过率50%—400% 。
      Improving low density powder horizontal decent(powder contact with the net) in gravity settling,domino offect,improving high density metal  retention or wedged in the net, Improving the adhension effect of electrostatic powder, so as to improve the screening efficiency and screening quality improvement with the adhesion effect of electrostatic powder, thus improve the screening efficiency and quality of screening.In screening pass rate, usually passing rate of 50% - 400% more than without ultrasonic vibrating screen.

不锈钢超声波振动筛
不锈钢超声波振动筛


     1、减少或不产生清网时间。
     2、筛分过程中不产生橡胶球等辅助物对粉体的污染。
     3、保持网口尺寸,稳定筛分精度。
    4、分解粘附物质,减少筛上物。
    5、减少筛分次数。

   1, to reduce or not produce clear net time.
   2, Does not produce the AIDS such as rubber ball to powder pollution in screening process
   3, keep size, stable screening accuracy.
   4, decomposition adhesive material, reduce material on the screen.
   5, reducing frequency of screening.

超声波振动筛技术参数

Parameters

超声波振动筛技术参数
    超声波换能器 ——超声波系统扩展使用用同一个超声电源,连接一个清网换能器,用超声波换能器的辐射面与被堵塞的网面接触,相对位移,即可清除网口的堵塞物。具有快速高效、改善清网质量、不改变网口尺寸、不伤害 丝网表面质量等优点,可广泛应用于试验筛和工作筛。
    我公司可以根据客户要求定制设计超声波振动筛。电话:13783731601
    Ultrosonic wave transducer----ultrasonic system extension uses the same ultrasonic power,connect with a Clear net transducer,With radiating surface of the ultrasonic transducer and the blockage of net surface contact, relative displacement, can remove so plugs.With fast and efficient, improving the network quality, don't change size,  don't hurt the screen surface quality, can be widely applied in the test sieve sieve and work.

My company can custom design of ultrasonic vibrating screen according to customer request.Telephone: 13783731601
